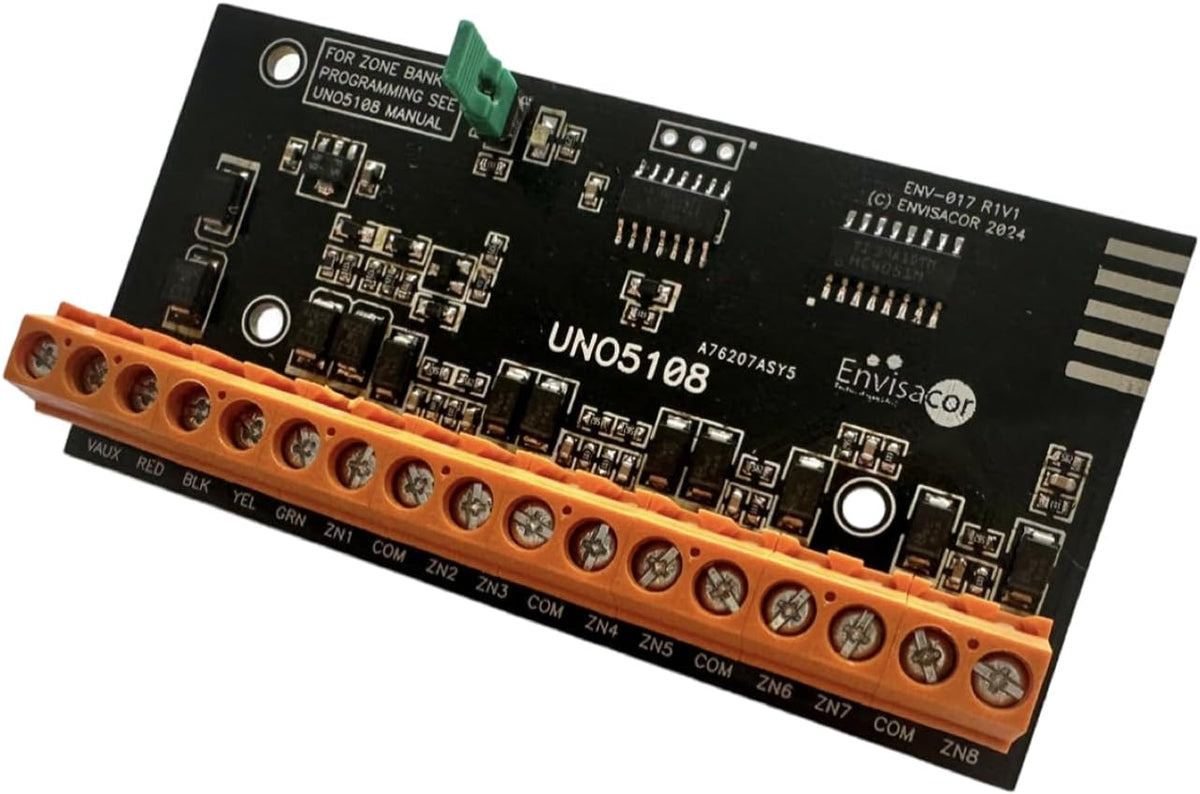

UNO5108 Zone Expander for UNO IP Panel & DSC PowerSeries. 8 Inputs, Addressable to 128 Zones

Addressable 8-Zone Expander

The UNO5108 ia a Bus-Connected Zone Expander that allows you to add up to 8 additional zones to an UNO™ Alarm Panel. It is addressable to allow for support for up to 128 zones on a system.

Compatibility

The UNO5108 is compatible with most DSC PowerSeries alarm systems.

Features

• Supports 8 zones
• Addressable: supports addressing up to 128 zones.
• Compatibilty: compatible with most DSC PowerSeries alarm panels.

Specifications

• Connections: 8 zone connectors, 4-wire bus connector, 1 Aux power connector
• Dimensions: 93 mm (3-5/8″) x 38 mm (1-1/2″)

Included In The Box

• UNO5108 module
• Nylon stand-offs
• Resistor pack
• Instruction sheet
• Two-way tape
